One-Touch Rotation
The mattress platform rotates 90° using the hand controller. Backrest, leg-section and rotation functions are powered by three separate actuators.

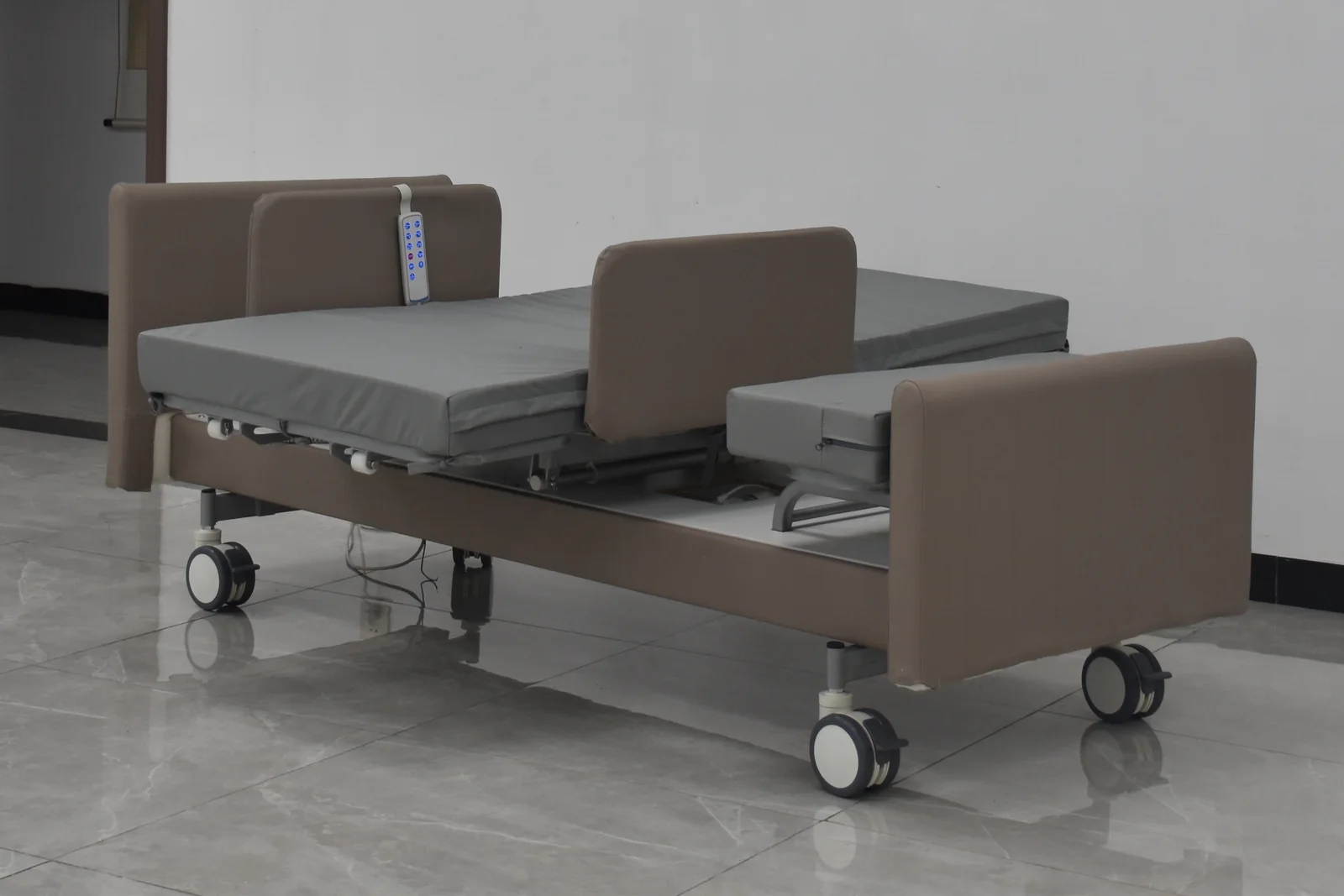

SLD-A31-421K in the flat position, with upholstered panels and mattress. Click a photo to enlarge; click again to close.
Electric rotating home care & nursing bed
SLD-A31-421K Electric Rotating Home Care Bed
Electric rotating home care bed with one-touch 90° platform rotation, adjustable back and leg sections, upholstered panels and a 100 mm TPU mattress.
90°Platform rotation
0–70°Backrest adjustment
250 kgSafe working load
100 mmTPU mattress included
Key Functions
Configuration at a Glance
Model-specific functions for hospital, care-project and distributor product selection.
Back & Leg Adjustment
Electric backrest adjustment from 0° to 70° and leg-section adjustment from 0° to 30°. A dedicated button stops the backrest at 30°.
Upholstered Panels
Upholstered head, foot and side panels give the bed a residential appearance for home care and nursing environments.
Daily Care Features
Electric CPR, a head-washing access position, two European-style side rails and four 5-inch castors are included in the specified configuration.
Technical Specifications
| Model | SLD-A31-421K |
|---|---|
| Overall dimensions (L × W × H) | 2050 × 980 × 510 mm |
| Mattress platform | 1950 × 840 mm; slatted platform |
| Backrest adjustment | 0–70° |
| Leg-section adjustment | 0–30° |
| Platform rotation | One-touch 90° rotation |
| Backrest preset | One-touch 30° with automatic stop |
| Side-rail height above platform | 330 mm |
| Headboard / footboard height above platform | 310 / 105 mm |
| Safe working load | 250 kg |
| Net weight | 135 kg, including the 100 mm TPU mattress |
| CPR | Electric CPR |
Standard Configuration
- Bed frame × 1
- Control box × 1; backrest actuator × 1; leg-section actuator × 1; rotation actuator × 1
- Hand controller × 1
- Headboard × 1; footboard × 1; side panels × 2
- European-style side rails × 2
- 5-inch castors × 4
- 100 mm TPU mattress × 1
- Beech-effect prefinished head/foot boards with upholstered panel design; color options available
- Pretreated, electrostatically powder-coated frame
Product Photography

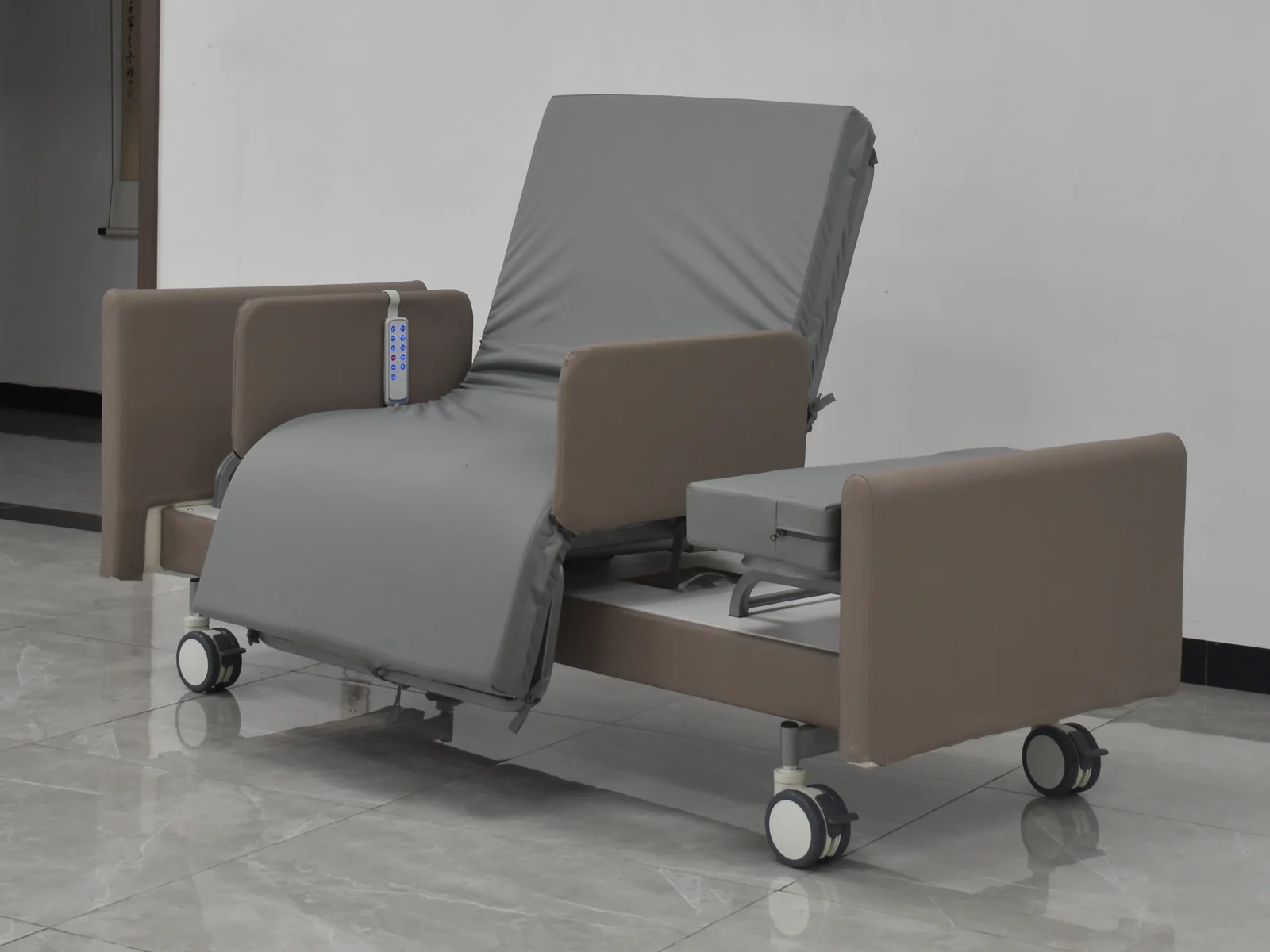

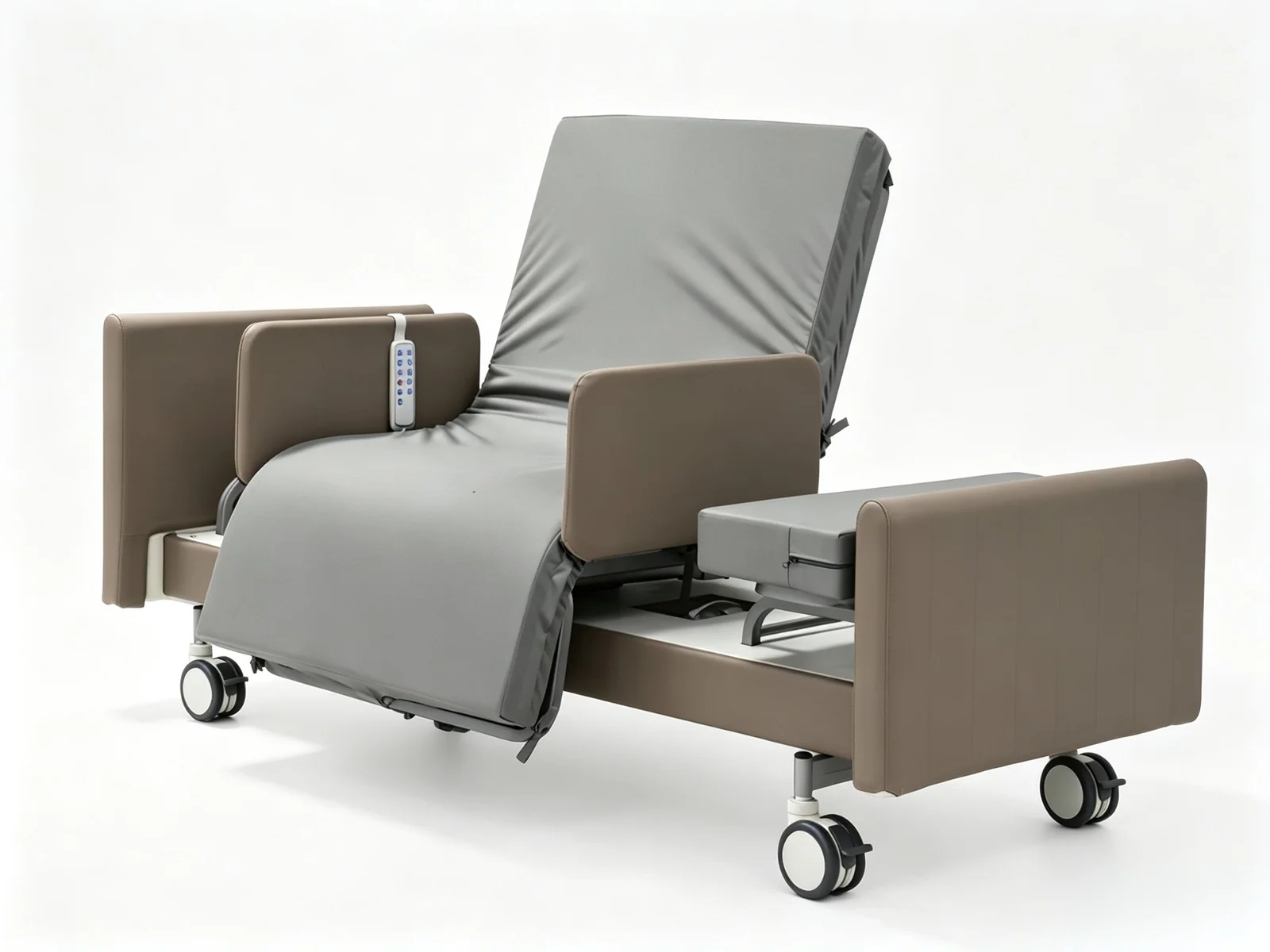

Backrest-Raised View
Packing & Logistics
| Packing dimensions | 2120 × 1010 × 450 mm |
|---|---|
| Carton | Two-piece export carton (lid and base) |
| Quantity per carton | 1 bed |
| Reference loading: 20GP / 40GP / 40HQ | 30 / 65 / 65 beds |
| Gross weight | To be confirmed |
Container quantities are reference values for the specified packing. Confirm the final order configuration before shipment.
Recommended Application
For home care, nursing homes, elderly care and rehabilitation projects that require a rotating mattress platform and a residential-style bed finish.
Before Ordering
- Confirm the exact model and configuration, voltage and plug requirements.
- Confirm mattress and accessory requirements with the quotation.
- Request model-matched compliance documents for your destination market.
- Confirm final packing and shipment details.
Request SLD-A31-421K Quotation
Send quantity, destination country, application and required configuration.
