Five Function Electric Bed

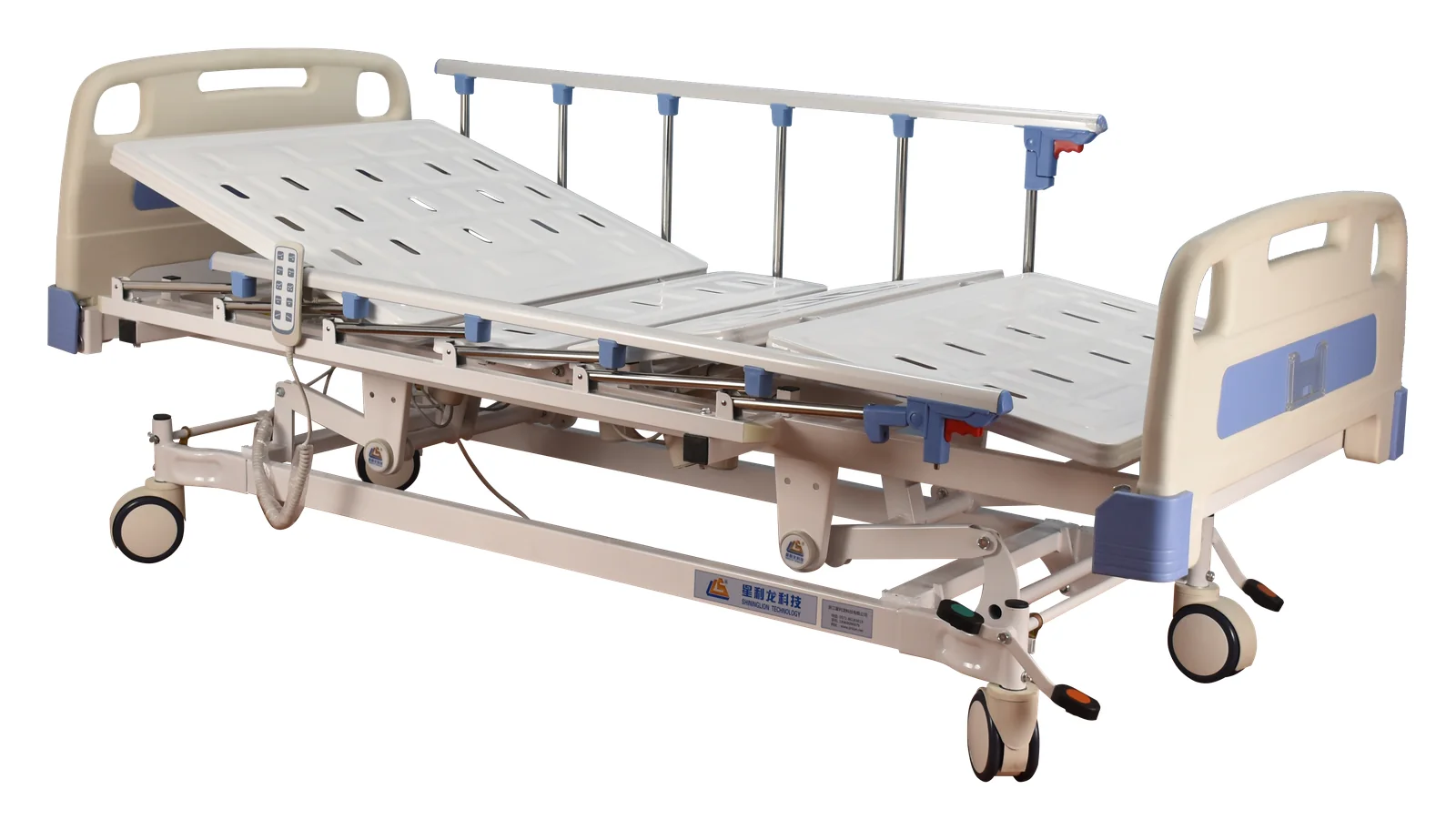

SLD-A51-111 Five Function Electric Medical Bed
Five function electric medical bed with backrest, legrest, height, Trendelenburg and reverse Trendelenburg adjustment for hospital wards and project supply.
5 FunctionElectric Control
410-725 mmHeight Range
250 kgSafe Working Load
2140 × 960 mmOverall Size
Key Functions
Electric Positioning For Daily Ward Care
Catalogue-matched functions and configuration help hospital and distributor buyers compare the exact model before quotation.
Backrest Adjustment
Electric backrest adjustment up to 75° ±5° for patient positioning and routine nursing.
Legrest Adjustment
Electric legrest adjustment up to 40° ±5° supports comfort and standard care positions.
Height Adjustment
Electric height range of 410-725 mm supports patient transfer and caregiver operation.
Trendelenburg Positions
15° ±2° Trendelenburg and reverse Trendelenburg support clinical positioning.
Technical Specifications
| Model | SLD-A51-111 |
|---|---|
| Product Type | 5 function electric medical bed |
| Overall Dimensions | 2140 × 960 mm |
| Backrest Adjustment | 0-75° ±5° |
| Legrest Adjustment | 0-40° ±5° |
| Bed Height | 410-725 mm |
| Safe Working Load | 250 kg |
| Main Functions | Backrest, legrest, height, Trendelenburg and reverse Trendelenburg adjustment |
Standard Configuration
- Linear motor × 4
- Control box × 1
- Hand controller × 1
- Frame × 1
- One-step forming steel mattress platform × 4 sections
- Six-column aluminum siderail × 2
- Plastic head and foot board × 1 set
- Ø125 mm central-locking castor × 4
- Bumper × 4
- IV pole provision × 4
- Drainage hook × 4
Optional Configuration
- Electric CPR
- Manual CPR
- Weighing system
- Bed extension
Buyer Verification Notes
- Confirm voltage and plug requirements before quotation.
- Confirm the exact model suffix and castor configuration.
- Request packing dimensions and container loading data for the ordered configuration.
- Request model-matched compliance documents required by the destination market.
Request SLD-A51-111 Quotation
Send quantity, destination country, application and required configuration.
