Side Rail & Board Detail
Reserved for the exact 17A1 rail and board configuration.
Side Rail Detail
To Be Added
To Be Added
Control Detail
To Be Added
To Be Added
Castor Detail
To Be Added
To Be Added
Hospital Project Supply

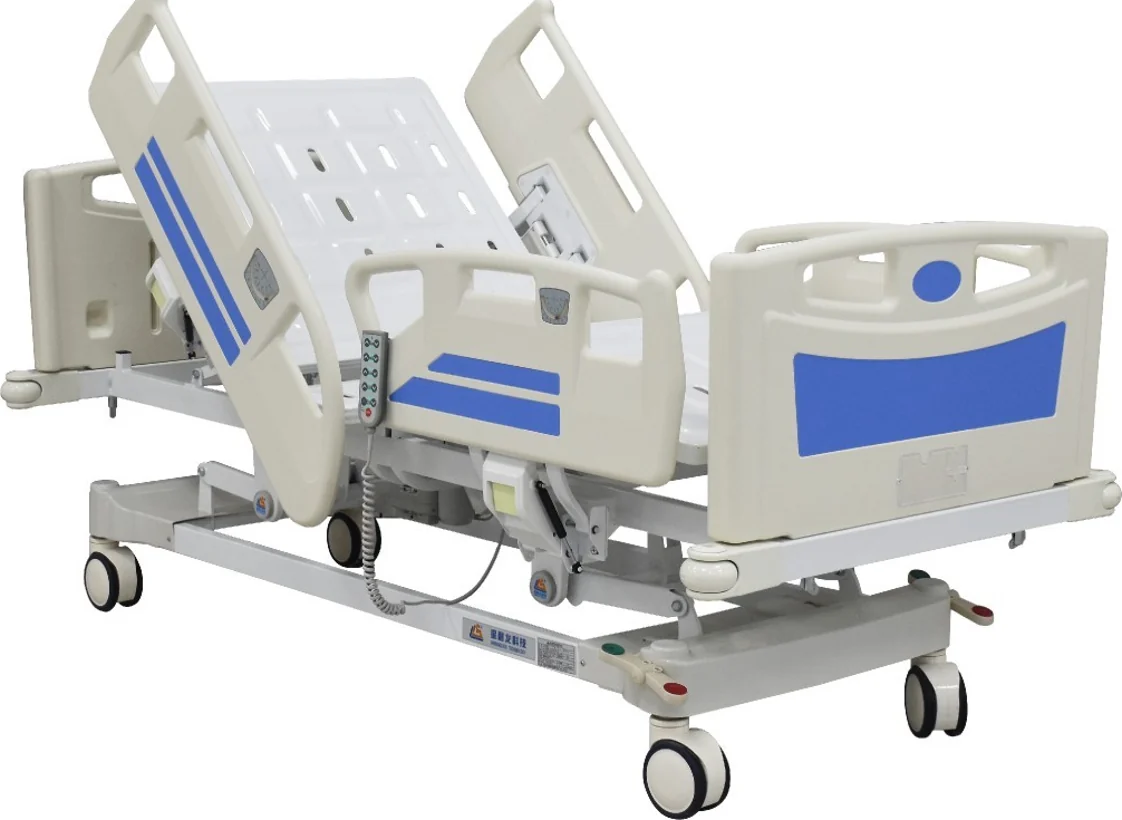

SLD-A51-112 (17A1) Five Function Electric Medical Bed
Straightforward hand-controller operation with standard plastic siderails for practical hospital and distributor projects.
Five functionElectric adjustment
Ward modelProject supply
OEM optionsBrand and color support
Export supplyDistributor friendly
SLD-A51-112 Series
Choose The Exact Variant
Each configuration has its own page, product image and inquiry link. Select the exact suffix required for your project.
Key Functions
Reliable Five Function Ward Bed
Clear product information for buyers who need to compare ward-bed specifications before requesting a quotation.
Backrest Adjustment
Supports patient positioning for nursing and daily ward care.
Legrest Adjustment
Improves comfort and helps support basic clinical positioning.
Height Adjustment
Designed for easier nursing operation and patient transfer.
Trendelenburg Options
Available configuration for hospital project requirements.
Product Details
Reserved Detail Views For 17A1
The catalogue image is published now. Variant-specific close-up photos will be added here when the next photo set is available.
Control System
Reserved for the exact handset, panel and control layout.
Castor & Brake
Reserved for mobility and central-locking details.
Frame & Platform
Reserved for actuator, deck and frame construction details.
Technical Specifications
| Model | SLD-A51-112 (17A1) |
|---|---|
| Product Type | Five function electric medical bed |
| Overall Size | 2140 x 1050 mm |
| Height Range | 450-750 mm |
| Backrest / Legrest | 75° ±5° / 40° ±5° |
| Trendelenburg | 15° ±2° and reverse Trendelenburg 15° ±2° |
| Safe Working Load | 250 kg |
| Control Layout | Hand controller with standard plastic siderails |
| Variant Features | Electric CPR, 100 mm auto regression and angle indicator |
Packing & Loading Data
| Net Weight | To be confirmed before quotation |
|---|---|
| Gross Weight | To be confirmed before quotation |
| Packing Size | To be confirmed before quotation |
| 20GP Loading | To be confirmed before quotation |
| 40HQ Loading | To be confirmed before quotation |
| Documents | Quotation, specification sheet, packing details and product photos |
Configuration
SLD-A51-112 (17A1) Configuration
The following configuration is taken from the current SHLION medical bed catalogue. Confirm project-specific options before quotation.
Standard Configuration
- Linear motor - 4 pcs
- Control box - 1 pc
- Hand controller - 1 pc
- Steel frame - 1 pc
- One-step forming steel mattress platform - 4 pcs
- Plastic siderail - 1 set
- Plastic head board and foot board - 1 set
- 125 mm central locking castor - 4 pcs
- Bumper wheel - 4 pcs
- IV pole provision - 4 pcs
- Drainage hook - 4 pcs
Optional Configuration
- Manual CPR
- Weighing system
- Bed extension
Video & Selling Point
Demo Video Placeholder
This space is reserved for a function demo video when the product video is ready.
Function Demo To Be Added
For the final website, this area can show bed lifting, backrest adjustment, legrest adjustment and nursing operation details.
Buyer-focused Selling Points
Why buyers request this model
- Main export model for ward and project supply
- Five electric functions for daily hospital use
- Flexible configuration for distributor and OEM orders
- Suitable for batch procurement and long-term supply
- Easy to compare and quote for overseas projects
Request SLD-A51-112 (17A1) Quotation
Click the button and the email will open with this product name and page link already included.
