Dual Touchscreen Controls

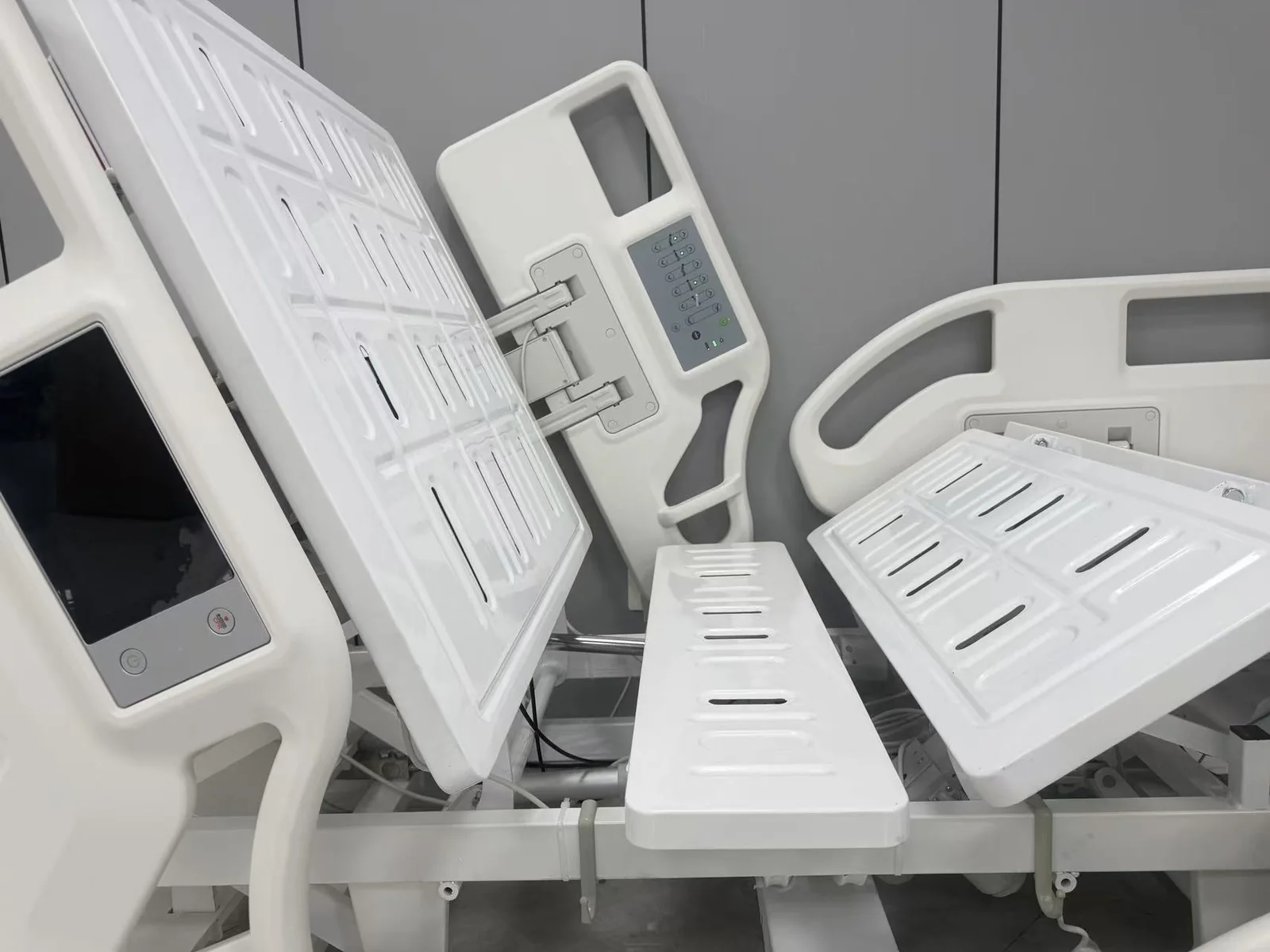

A 7-inch LCD touchscreen on the outside of each backrest side rail provides bed controls and status display. A hanging nurse control panel is also supplied.
SLD-A51-112 (20A4) in the showroom, showing the side-rail touchscreen and hanging nurse control panel. Click a photo to enlarge; click again to close.
Advanced electric hospital bed

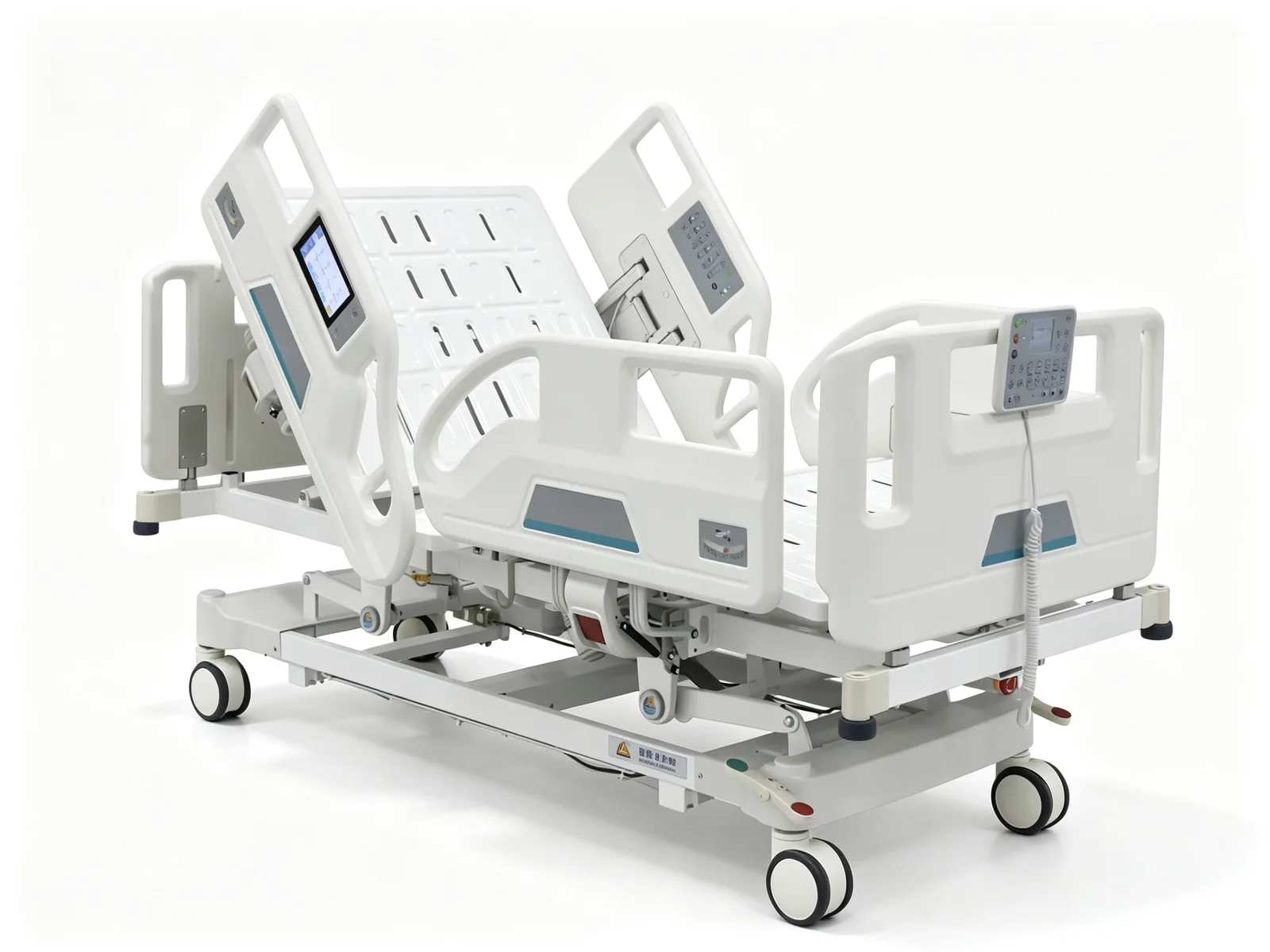

SLD-A51-112 (20A4) Electric Hospital Bed with Touchscreen Controls
Advanced electric hospital bed with dual 7-inch touchscreen controls, weighing, manual and electric CPR, auto-regression and one-touch positioning.
7-inchDual touchscreens
480–800 mmHeight range
250 kgSafe working load
±100 gSpecified weighing accuracy
Key Functions
Configuration at a Glance
Model-specific functions for hospital, care-project and distributor product selection.
One-Touch Positions
Presets include cardiac chair, examination, Trendelenburg, shock position, 30° backrest with automatic stop and bed-exit positioning.
Auto-Regression & CPR
Backrest and leg-section auto-regression accompanies electric positioning. Manual and electric CPR functions are included in the specified configuration.
Weighing & Status Indicators
The weighing function has a specified accuracy of ±100 g. A night light, lithium backup battery, lowest-position indicator and battery indicator are included.
Technical Specifications
| Model | SLD-A51-112 (20A4) |
|---|---|
| Overall dimensions (L × W × H) | 2120 × 1070 × (480–800) mm; ±20 mm |
| Mattress platform | 1950 × 900 mm |
| Backrest adjustment | 0–70°; ±5° |
| Thigh-section adjustment | 0–35°; ±5° |
| Lower-leg section angle | 22°; ±2° |
| Height adjustment | 480–800 mm; 320 mm travel |
| Trendelenburg / reverse Trendelenburg | 0–15° each; ±2° |
| Safe working load | 250 kg |
| Weighing accuracy (specified) | ±100 g |
| Side-rail height above platform | 430 mm |
| Headboard / footboard height above platform | 430 mm |
| Rail-to-rail and rail-to-end-board gaps | Less than 60 mm, as specified |
| CPR | Manual and electric |
| Auto-regression | Backrest and leg section |
Standard Configuration
- Bed frame × 1; control box × 1
- Backrest actuator × 1; leg-section actuator × 1; bed-height actuators × 2
- Lithium backup battery × 1; night light × 1

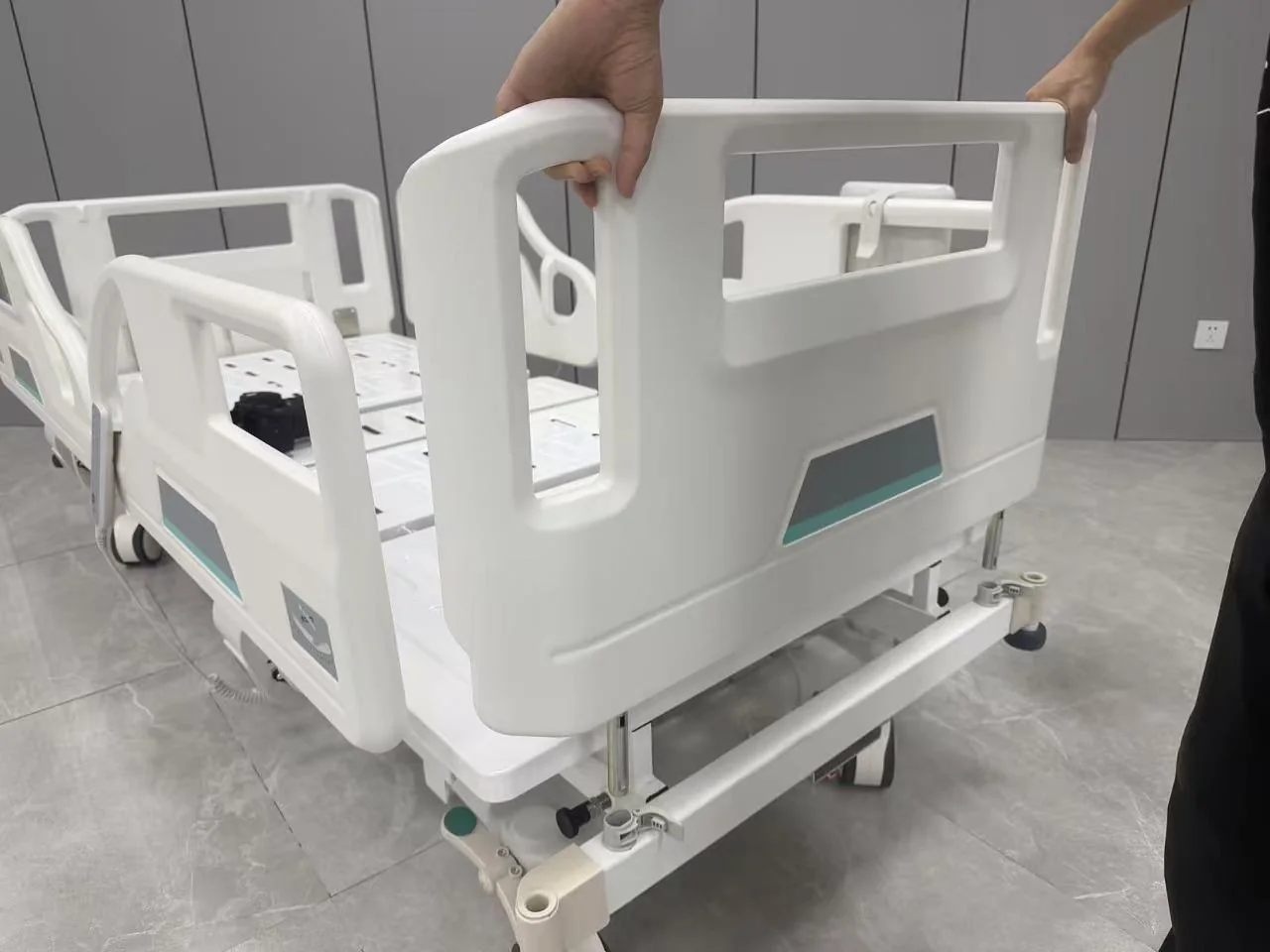

- HDPE blow-molded headboard × 1 and footboard × 1
- HDPE side rails × 4, with angle indicators
- Control buttons on both inner and outer faces of the backrest rails
- 7-inch LCD touchscreens on the outer faces of both backrest rails
- Assist handles on the backrest side rails

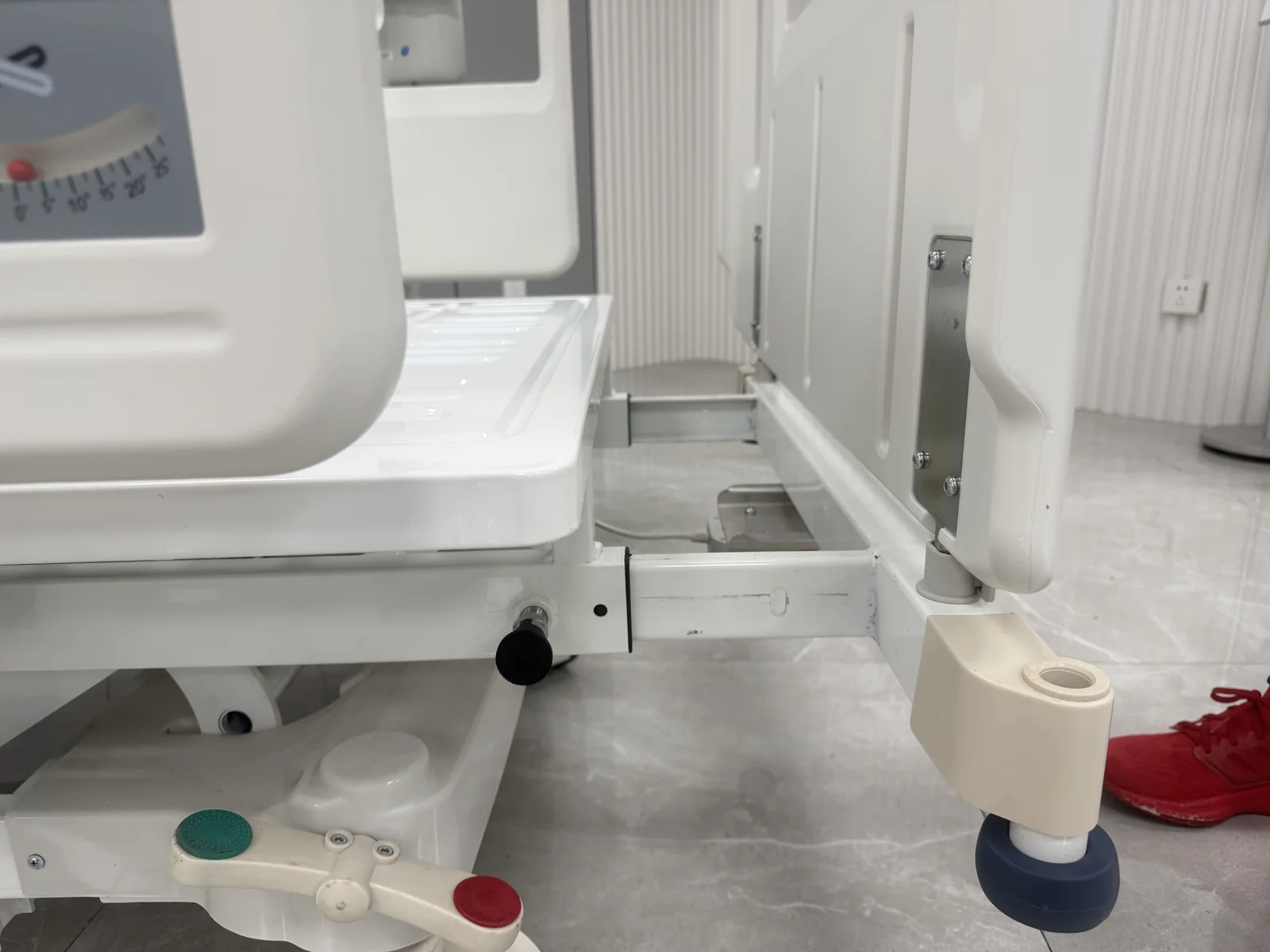

- Central-locking castors × 4

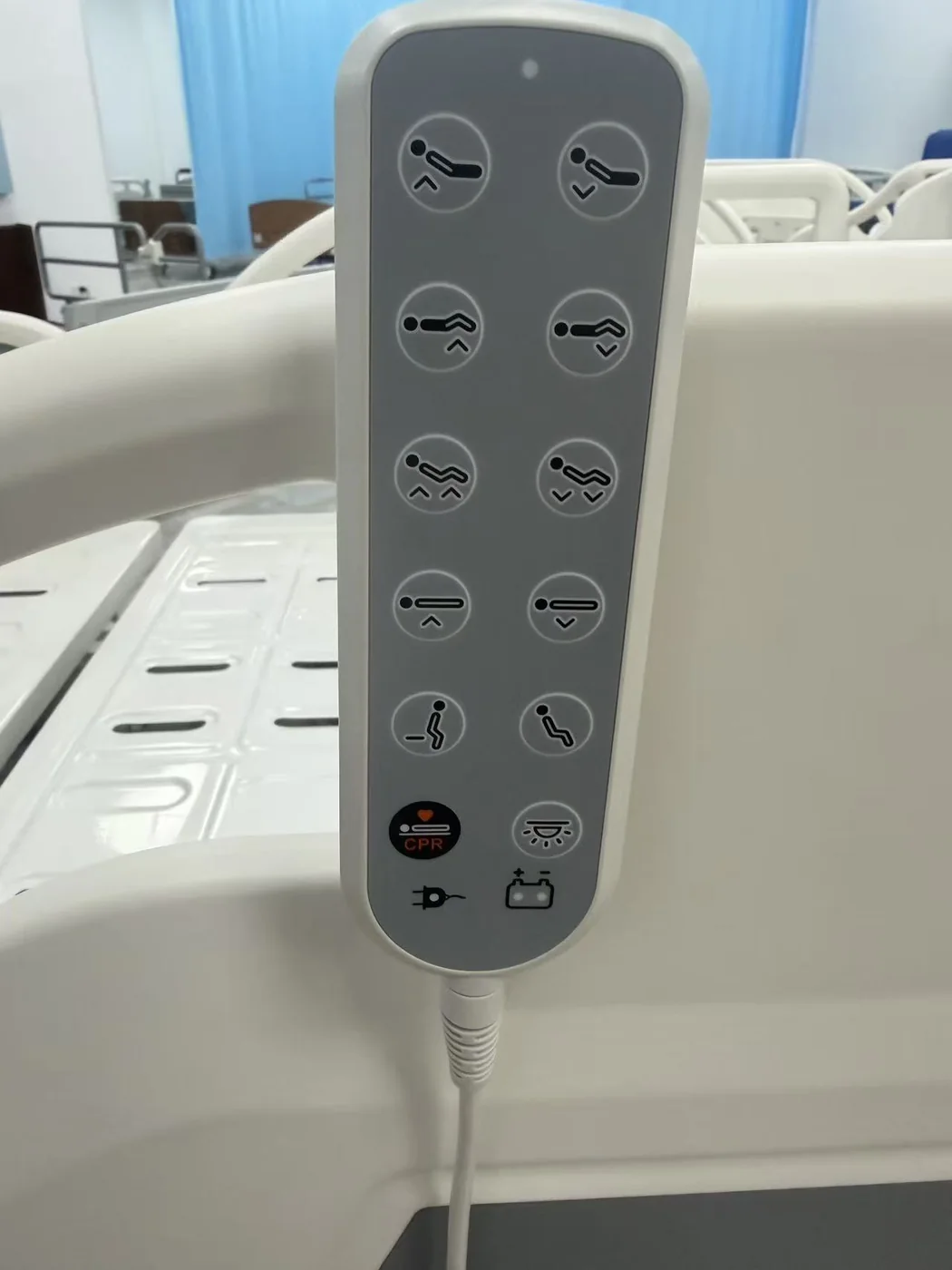

- Hanging nurse control panel × 1
- Weighing function; lowest-position and battery indicators
- Pretreated, electrostatically powder-coated frame
Packing & Logistics
| Packing dimensions | 2270 × 1100 × 520 mm |
|---|---|
| Carton | Two-piece export carton (lid and base) |
| Quantity per carton | 1 bed |
| Reference loading: 40HQ | 40 beds |
| 20GP / 40GP loading | To be confirmed |
| Net / gross weight | To be confirmed |
Container quantities are reference values for the specified packing. Confirm the final order configuration before shipment.
Recommended Application
For hospital wards, advanced care and ICU procurement projects requiring touchscreen operation, weighing and one-touch positioning. Confirm the required configuration and destination-market documentation before ordering.
Before Ordering
- Confirm the exact model and configuration, voltage and plug requirements.
- Confirm mattress and accessory requirements with the quotation.
- Request model-matched compliance documents for your destination market.
- Confirm final packing and shipment details.
